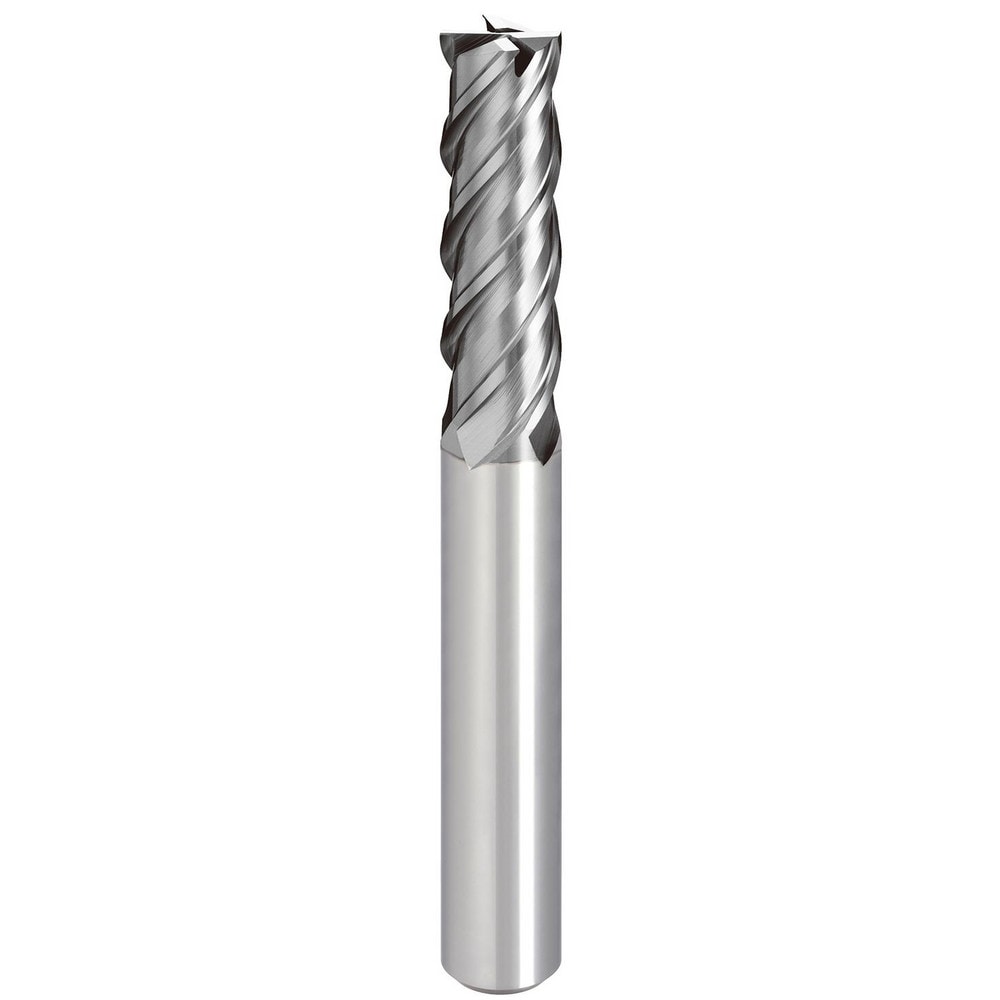

Square End Mill: 1/8" Dia, 1/2" LOC, 4 Flute, Solid Carbide
Item #: 09195165
Brand: Mitsubishi
Model #: 690929
Product Specifications
| Mill Diameter (mm) | 3.18 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Mill Diameter (Inch) | 1/8 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (mm) | 12.70 |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 63.50 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlCrN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38-40 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Aluminum & Non-Ferrous |
| Secondary Workpiece Material Code | N |
| Coating/Finish | AlCrN |
| Variable Helix | Yes |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Medium |
| Neck Length (Decimal Inch) | 0.5000 |
| Neck Length (mm) | 12.70 |
| Mill Diameter Tolerance | 0; -0.008 |
| Shank Diameter Tolerance | h6 |
| Series | VQ Endmill VHQJHV |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
