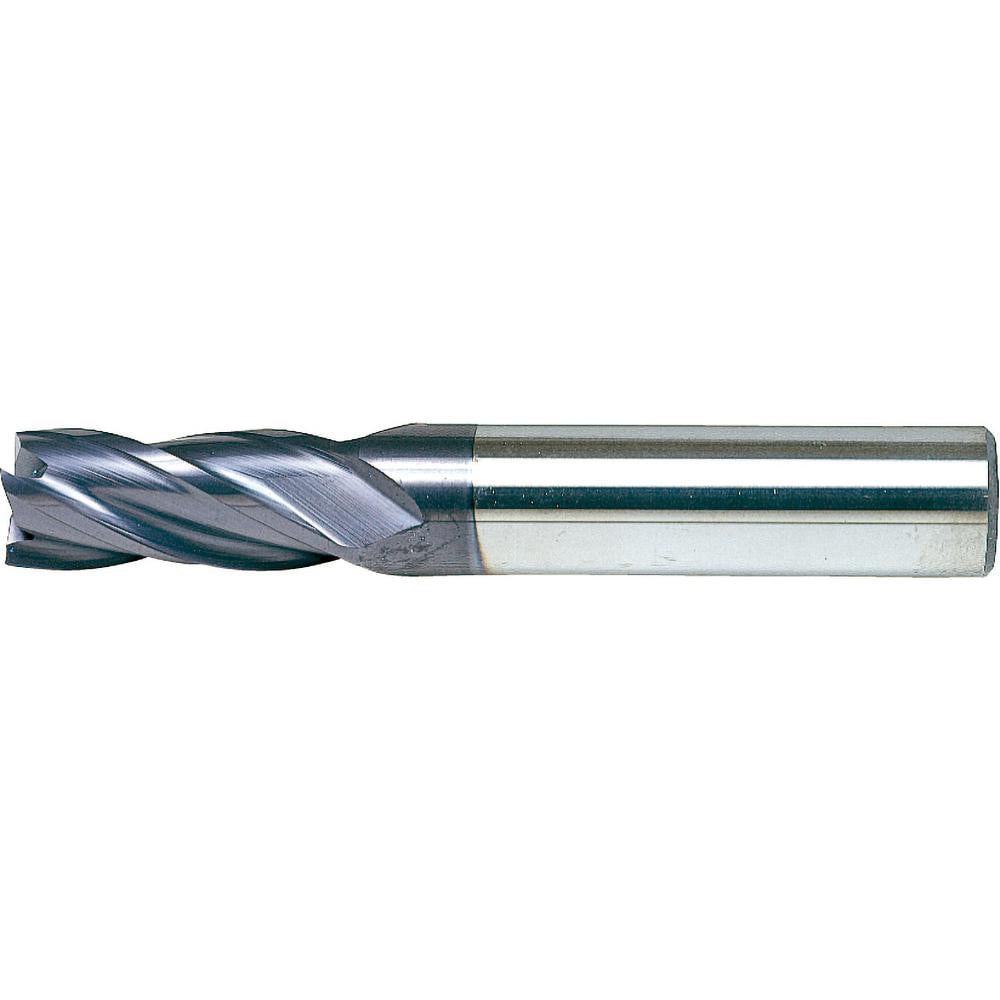

Square End Mill: 5/32" Dia, 4 Flute, Solid Carbide
Item #: 09078023
Brand: Mitsubishi
Model #: 10579688
Product Specifications
| Mill Diameter (mm) | 3.97 |
| Mill Diameter (Decimal Inch) | 0.1562 |
| Mill Diameter (Inch) | 5/32 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.3910 |
| Length of Cut (mm) | 9.93 |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 50.80 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiCrN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; M |
| Secondary Workpiece Material | High-Temp Alloy; Stainless Steel; Hardened Materials |
| Secondary Workpiece Material Code | S; H; M |
| Coating/Finish | AlTiCrN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Medium |
| Neck Length (Decimal Inch) | 0.3910 |
| Neck Length (mm) | 9.93 |
| Mill Diameter Tolerance | 0; -0.008 |
| Shank Diameter Tolerance | h6 |
| Series | M-Plus Endmill MP4MC |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
