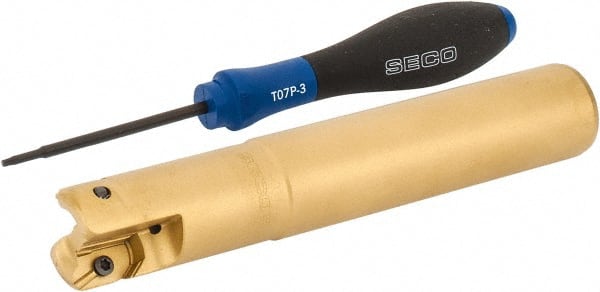

Seco - 1" Cutting Diam, 1" Shank Diam, Straight Shank Indexable Copy End Mill - 2 Inserts, XPKX12 Insert, R217.97 Toolholder, Steel, Through Coolant
Item #: 61924098
Brand: Seco
Model #: 19575
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 2 |
| Insert Style | XPKX12 |
| Toolholder Style | R217.97 |
| Series | R217 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.2000 |
| Shank Length (Decimal Inch) | 3.8000 |
| Maximum RPM | 40000 |
| Projection (Decimal Inch) | 3.7200 |
