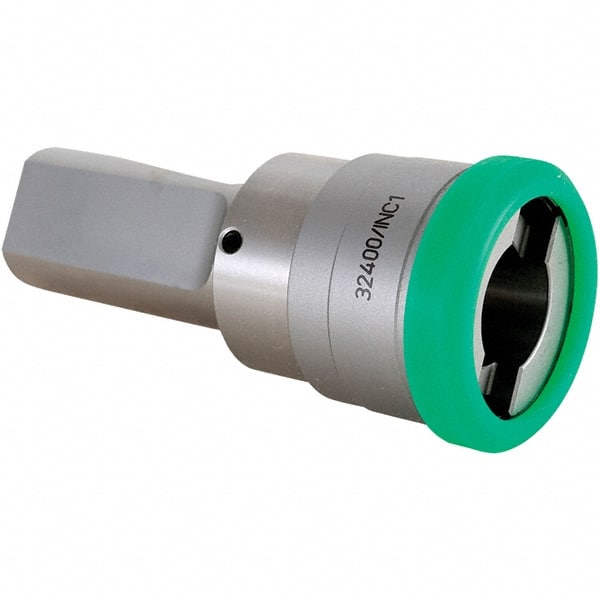

Techniks - 1" Straight Shank Diam Tension & Compression Tapping Chuck - #0 to 9/16" Tap Capacity, 1.76" Projection
Item #: 61962825
Brand: Techniks
Model #: 32400/INC1
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (Inch) | #0 |
| Maximum Tap Capacity (Inch) | 9/16 |
| Projection (Decimal Inch) | 1.7600 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | M1.6-M3.5 |
| Minimum Collet Capacity (Inch) | #0; #6 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Maximum Collet Capacity (mm) | M14 |
| Overall Length (Decimal Inch) | 3.7100 |
