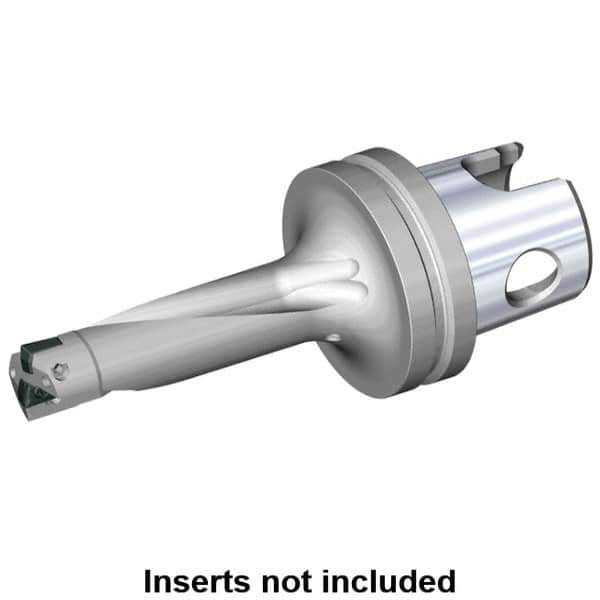

Kennametal - 1-1/2" Max Drill Depth, 3xD, 12.7mm Diam, Indexable Insert Drill - KM40 Modular Connection Shank
Item #: 61965877
Brand: Kennametal
Model #: 4122553
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFR |
| Drill Diameter (mm) | 12.70 |
| Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (Decimal Inch) | 1.5000 |
| Shank Type | Modular Connection |
| Modular Connection Size | KM40 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Diameter (Decimal Inch) | 0.5400 |
| Overall Length/Projection (Decimal Inch) | 2.6400 |
| Insert Compatibility | DFR 0202.. |
| Series | Drill-Fix |
