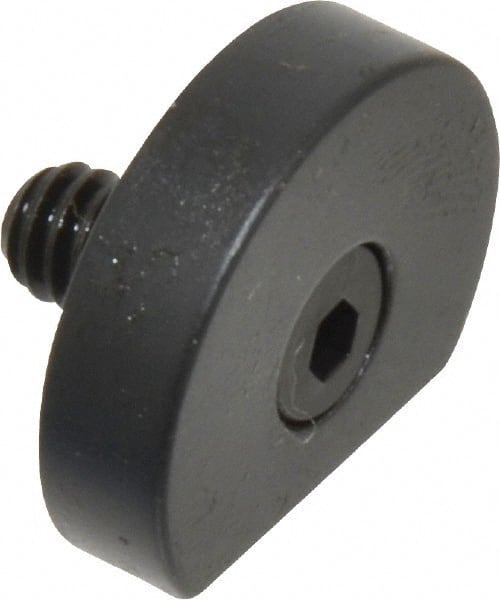

Mitee-Bite - 1/8" Mild Steel Hex, 1/4-20 Stud Thread, Symmetrical Hex Clamp - 1/4" Hex Height, 800 Lb Holding Force, Mild Steel Stud, 15/32" Long Thread, 6.2 Ft/Lb Torque, 4 Clamps
Item #: 62018932
Brand: Mitee-Bite
Model #: 10504
Exact Tooling IR#: 04
Features and Benefits
Symetrical hex clamps are used with parts that have similar matching components.
| Product Specifications | |
|---|---|
| Hex Type | Symmetrical |
| Hex Size (Inch) | 1/8 |
| Stud Thread Size | 1/4-20 |
| Hex Height (Inch) | 1/4 |
| Hex Height (Decimal Inch) | 0.2500 |
| Holding Force (Lb.) | 800.00 |
| Thread Length (Inch) | 15/32 |
| Thread Length (Decimal Inch) | 0.4688 |
| Stud Material | Mild Steel |
| Hex Head Material | Mild Steel |
| Torque (Ft/Lb) | 6.20 |
| Hex Clamp Style | Machinable Hex Clamp |
| Machinable Stock Amount (Decimal Inch) | 0.2500 |
| Number of Clamps | 4 |
