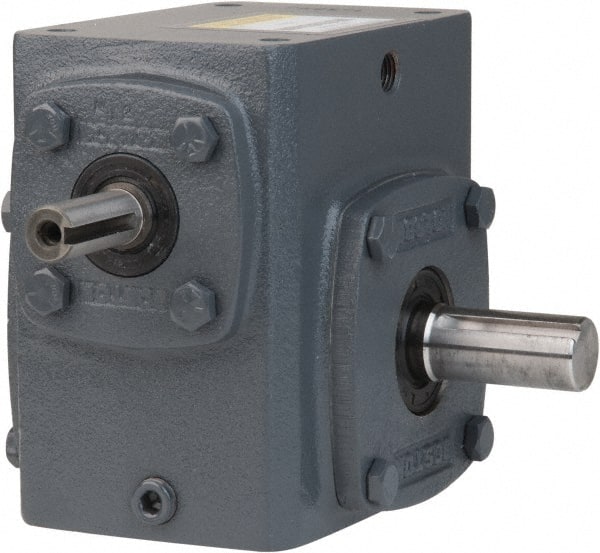

Boston Gear - 1.33 Centerline Distance, 50:1, 35 RPM Output, 1/4 Input Horsepower, 297 Lbs. Max Torque, Speed Reducer - Part No. 713-50-J, 1/2" Shaft Diam, Single Shaft Right, 3.06" High
Item #: 62041355
Brand: Boston Gear
Model #: 51629
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.330 |
| Ratio | 50:1 |
| PartNo | 713-50-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 0.5000 |
| Height (Inch) | 3.06 |
| Maximum Torque Inch/Lbs (Pounds) | 297.00 |
| Maximum Input Horsepower | 0.25 |
| Output RPM at 1750 Input | 35.0 |
