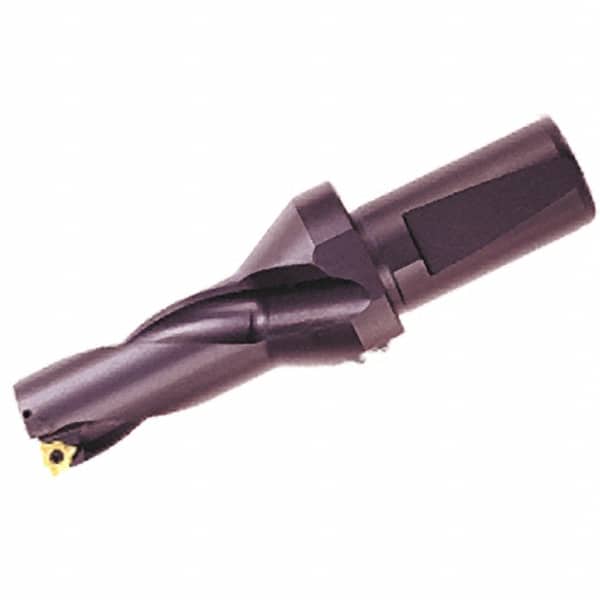

Iscar - 81mm Max Drill Depth, 2.25xD, 36mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 62062831
Brand: Iscar
Model #: 3200462
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DZ |
| Drill Diameter (mm) | 36.00 |
| Drill Diameter (Decimal Inch) | 1.4173 |
| Maximum Drill Depth (mm) | 81.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Through Coolant | NonThrough Coolant |
| Drill Depth by Diameter Ratio | 2.25xD |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 182.00 |
| Insert Compatibility | WOLH-GF; WOLH-SW |
| Body Length (mm) | 124.00 |
| Shank Length (mm) | 58.00 |
| Collar Diameter (mm) | 50.00 |
| Series | DZDRILLS |
