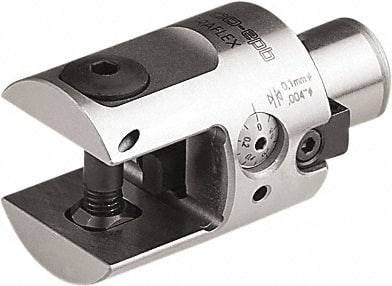

Seco - 16.5mm Body Diam, Manual Twin Cutter Boring Head - 18mm to 24mm Bore Diam
Item #: 62078647
Brand: Seco
Model #: 26687
Exact Tooling IR#: 04
Features and Benefits
Boring heads with two cutters (double edges) are used for roughing operations and can remove material twice as fast as single edge cutters .
Integral shank boring heads have the shank built into the head.
| Product Specifications | |
|---|---|
| Type | Twin Cutter Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 16.50 |
| Body Diameter (Decimal Inch) | 0.6496 |
| Mount Type | Integral Shank |
| Shank Type | Modular Connection |
| Modular Connection Size | Graflex 0 |
| Series | A750 |
| Minimum Bore Diameter (Decimal Inch) | 0.7087 |
| Minimum Bore Diameter (mm) | 18.00 |
| Maximum Bore Diameter (mm) | 24.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.9449 |
| Projection (mm) | 35.00 |
| Projection (Decimal Inch) | 1.3780 |
