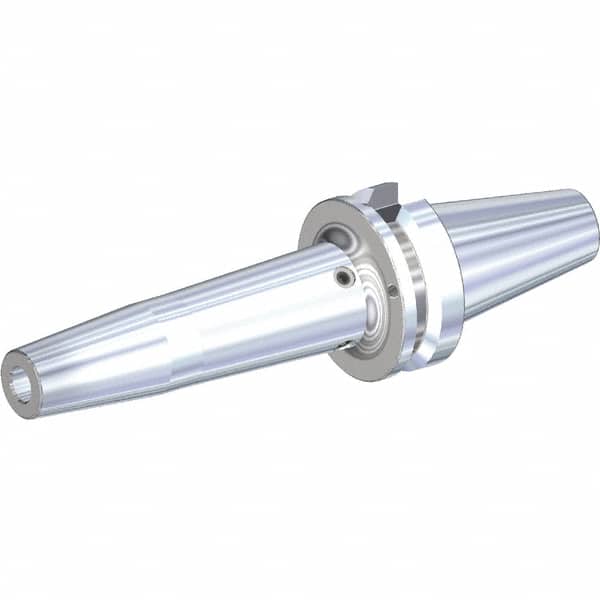

Kennametal - 20mm Hole Diam, BT50 Taper Shank Shrink Fit Tool Holder & Adapter - 160mm Projection, 33mm Nose Diam, 41mm Clamping Depth, 15,000 RPM, Through Coolant
Item #: 62100656
Brand: Kennametal
Model #: 3615403
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Hole Diameter (mm) | 20.00 |
| Projection (mm) | 160.00 |
| Projection (Decimal Inch) | 6.2992 |
| Nose Diameter (mm) | 33.00 |
| Nose Diameter (Decimal Inch) | 1.2992 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 41.00 |
| Overall Length (mm) | 261.80 |
| Overall Length (Decimal Inch) | 10.3070 |
| Balanced to (RPM) | 15000 |
