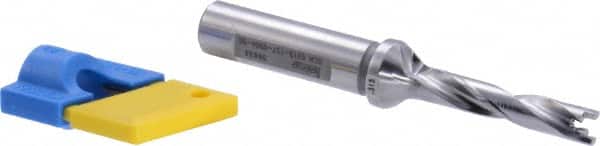

Iscar - 0.315" to 0.331" Diam, 5xD, 1.57" Max Depth, 1/2" Shank Diam, 3.95" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 62113923 Toolholder, Series SumoCham
Item #: 62113923
Brand: Iscar
Model #: 3202291
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.3150 |
| Maximum Drill Diameter (Decimal Inch) | 0.3310 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.5700 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 2.1800 |
| Overall Length (Decimal Inch) | 3.9500 |
| Shank Length (Decimal Inch) | 1.7700 |
