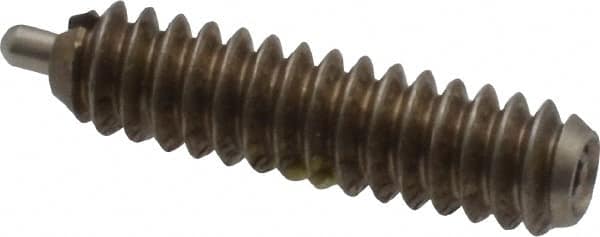

Vlier - 6-32, 17/32" Thread Length, 1/16" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.044 - 0.045" Max Plunger Diam, 17/32" Plunger Length, 1.5 Lb Init End Force, 4.5 Lb Final End Force
Item #: 62117122
Brand: Vlier
Model #: SSS48P
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 6-32 |
| Thread Length (Inch) | 17/32 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.0450 |
| Plunger Projection (Inch) | 1/16 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.0440 |
| Body Length (Inch) | 17/32 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 17/32 |
| Final End Force (Lb.) | 4.50 |
| Initial End Force (Lb.) | 1.50 |
