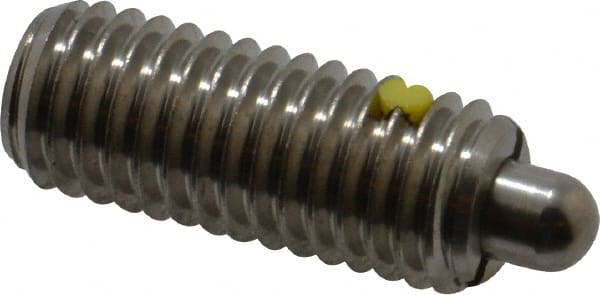

Vlier - 1/2-13, 1-1/4" Thread Length, 1/4" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.247 - 1/4" Max Plunger Diam, 1-1/4" Plunger Length, 6.6 Lb Init End Force, 17.4 Lb Final End Force
Item #: 62117429
Brand: Vlier
Model #: SSS60N
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Inch) | 1-1/4 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.2480 |
| Plunger Projection (Inch) | 1/4 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.2470 |
| Body Length (Inch) | 1-1/4 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 1-1/4 |
| Final End Force (Lb.) | 17.40 |
| Initial End Force (Lb.) | 6.60 |
