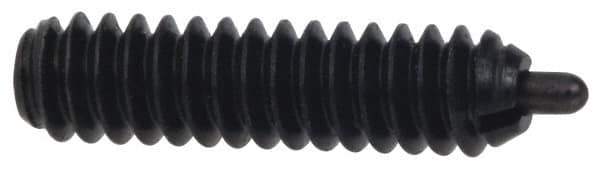

Vlier - 5/8-11, 1-1/2" Thread Length, 5/16" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.308 - 0.31" Max Plunger Diam, 1-1/2" Plunger Length, 10.5 Lb Init End Force, 25.5 Lb Final End Force
Item #: 62117460
Brand: Vlier
Model #: SSS62N
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 5/8-11 |
| Thread Length (Inch) | 1-1/2 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.3100 |
| Plunger Projection (Inch) | 5/16 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.3080 |
| Body Length (Inch) | 1-1/2 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 1-1/2 |
| Final End Force (Lb.) | 25.50 |
| Initial End Force (Lb.) | 10.50 |
