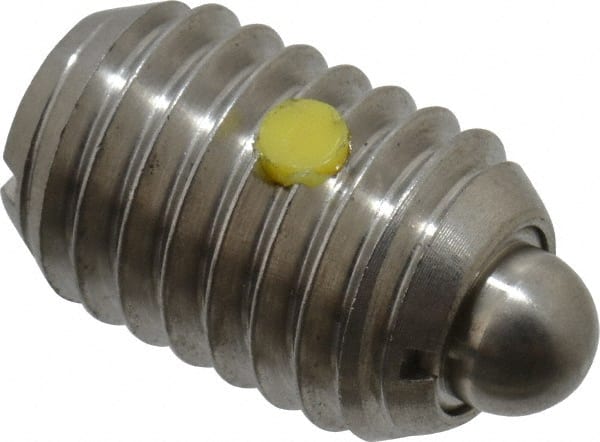

Vlier - 1/2-13, 3/4" Thread Length, 0.151" Plunger Projection, Stainless Steel Threaded Spring Plunger - 1/4" Max Plunger Diam, 0.75" Plunger Length, 1.75 Lb Init End Force, 5.5 Lb Final End Force
Item #: 62117932
Brand: Vlier
Model #: SSM61N
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Decimal Inch) | 0.7500 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.2480 |
| Plunger Projection (Decimal Inch) | 0.1510 |
| Locking Element | Yes |
| Body Length (Decimal Inch) | 0.7500 |
| Plunger Length Type | Stubby |
| Plunger Length (Decimal Inch) | 0.7500 |
| Final End Force (Lb.) | 5.50 |
| Initial End Force (Lb.) | 1.75 |
