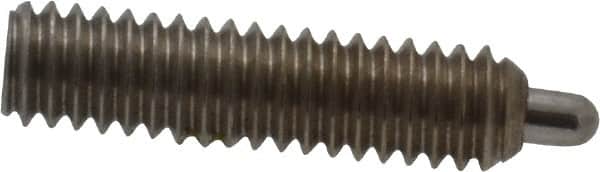

Vlier - 8-32, 5/8" Thread Length, 3/32" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.069 - 0.07" Max Plunger Diam, 5/8" Plunger Length, 0.7 Lb Init End Force, 2.3 Lb Final End Force, 0.063" Hex
Item #: 62119573
Brand: Vlier
Model #: SSPH51P
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 8-32 |
| Thread Length (Inch) | 5/8 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.0700 |
| Plunger Projection (Inch) | 3/32 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.0690 |
| Body Length (Inch) | 5/8 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 5/8 |
| Final End Force (Lb.) | 2.30 |
| Initial End Force (Lb.) | 0.70 |
| Hex Size (Decimal Inch) | 0.0630 |
