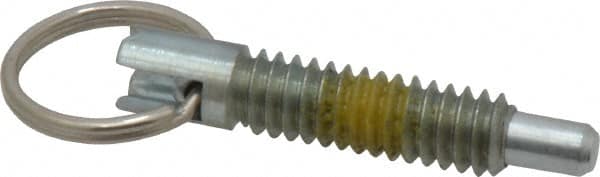

Vlier - 1/4-20, 0.8" Thread Length, 0.155" Plunger Diam, 1/4" Plunger Projection, 1 Lb Init to 2.5 Lb Final End Force, Steel Locking Pull Ring Plunger
Item #: 62124458
Brand: Vlier
Model #: PR250P
Product Specifications
| Thread Size | 1/4-20 |
| Thread Length (Decimal Inch) | 0.8000 |
| Plunger Type | Locking |
| Body Length (Decimal Inch) | 1.1400 |
| Length Under Head (Decimal Inch) | 0.8000 |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Plunger Diameter (Decimal Inch) | 0.1550 |
| Locking Element | Yes |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (Lb.) | 2.50 |
| Plunger Length (Decimal Inch) | 1.1400 |
| Ring Diameter (Decimal Inch) | 0.6200 |
| Head Height (Decimal Inch) | 0.3400 |
| Material | Steel |
