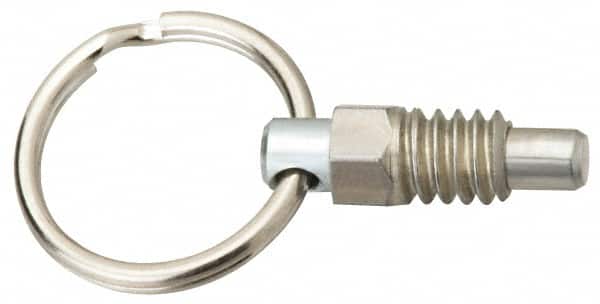

Vlier - 1/4-20, 0.31" Thread Length, 0.16" Plunger Diam, 0.19" Plunger Projection, 0.5 Lb Init to 2 Lb Final End Force, Stainless Steel Pull Ring Plunger
Item #: 62124680
Brand: Vlier
Model #: SPRSN250AP
Product Specifications
| Thread Size | 1/4-20 |
| Thread Length (Decimal Inch) | 0.3100 |
| Plunger Type | Non-Locking |
| Body Length (Decimal Inch) | 0.4400 |
| Length Under Head (Decimal Inch) | 0.3100 |
| Plunger Projection (Decimal Inch) | 0.1900 |
| Plunger Diameter (Decimal Inch) | 0.1600 |
| Locking Element | Yes |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (Lb.) | 2.00 |
| Plunger Length (Decimal Inch) | 0.6200 |
| Ring Diameter (Decimal Inch) | 0.7500 |
| Head Height (Decimal Inch) | 0.1800 |
| Hex Size (Decimal Inch) | 0.2500 |
| Material | Stainless Steel |
