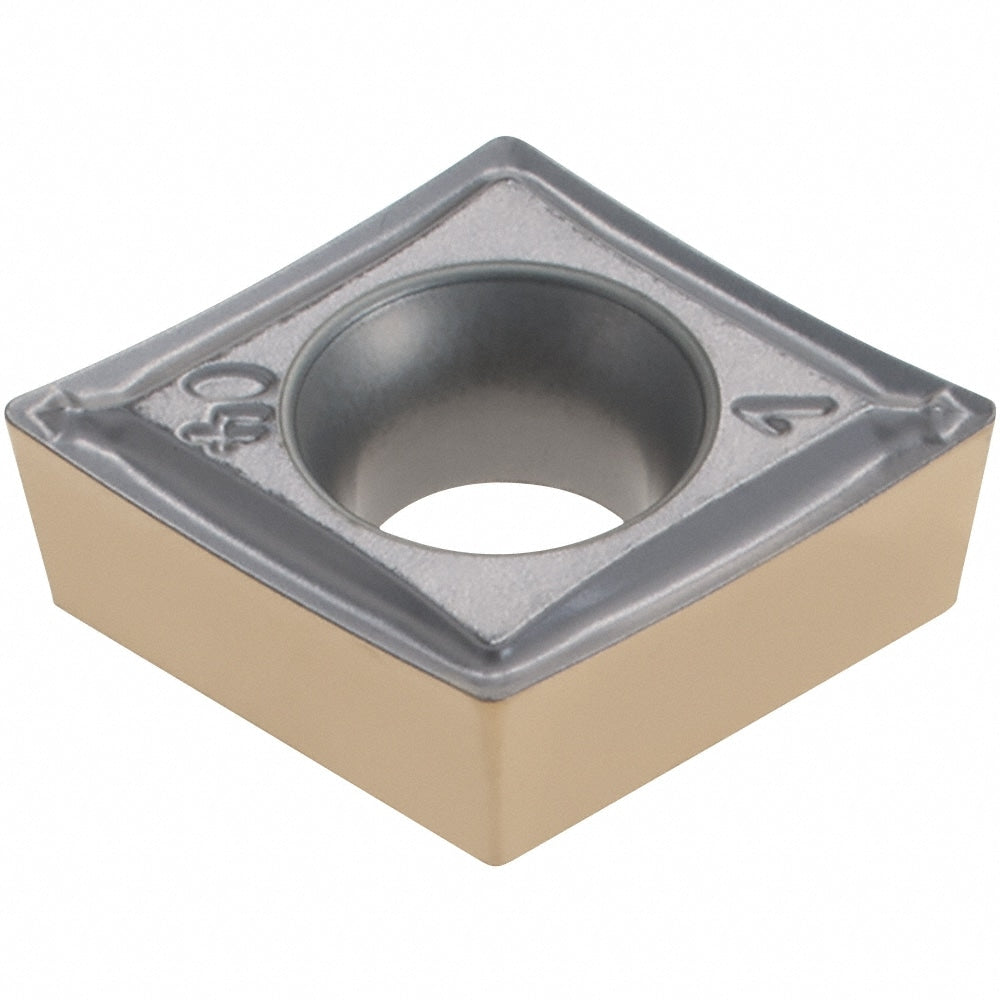

Turning Insert: CCMT 3-1-SM IC830, Carbide
Item #: 31915069
Brand: Iscar
Model #: 5509500
Product Specifications
| ANSI Insert Code | CCMT3-1 |
| ISO Insert Code | CCMT09T304 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | IC830 |
| Coating/Finish | AlTiN; TiN |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Hardened Materials (H) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | SM |
| ANSI Size Code | 3-1 |
| ISO Size Code | 09T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3-1 |
