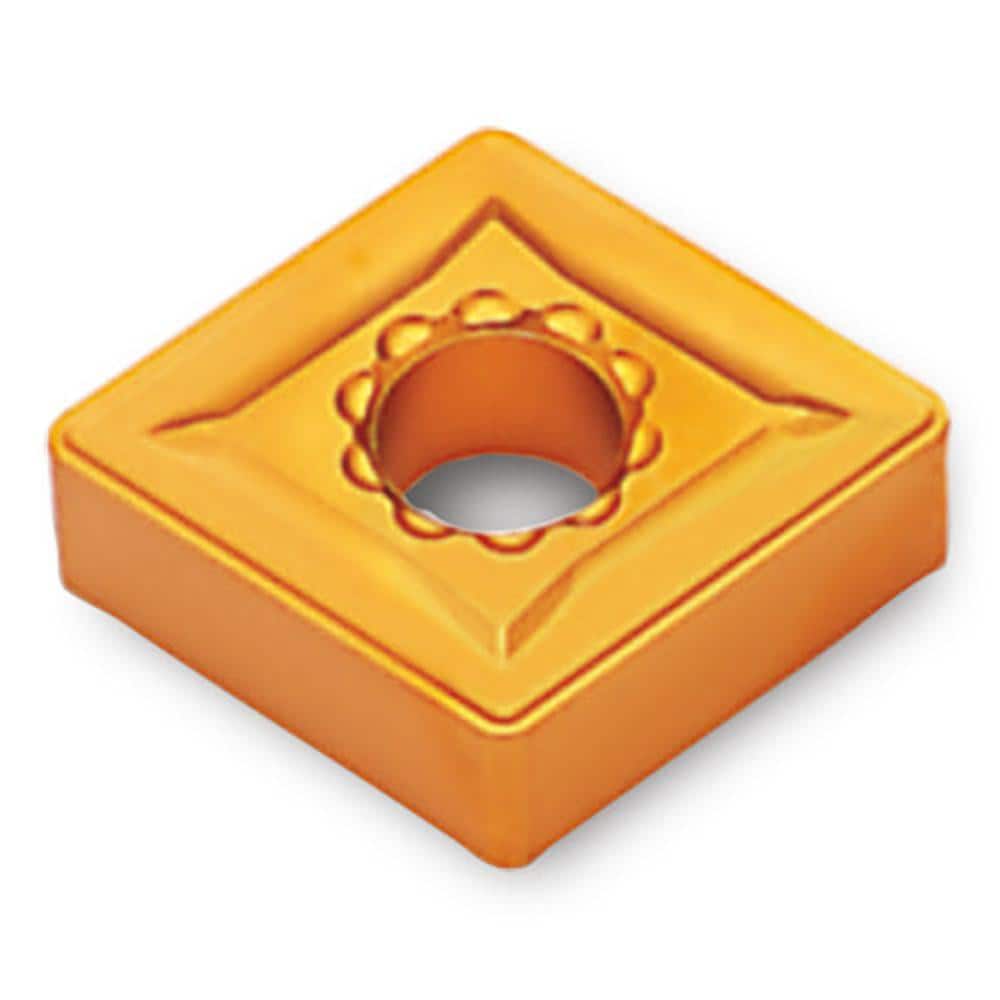

Turning Insert: CNMG432RT TT8125B, Carbide
Item #: 17319070
Brand: Ingersoll Cutting Tools
Model #: 6212517
Product Specifications
| ANSI Insert Code | CNMG432 |
| ISO Insert Code | CNMG120408 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80 |
| Manufacturer Grade | TT8125B |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | CNMG |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | CNMG120408RT TT8125B |
| Chip Breaker | RT |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| ANSI Size Code | 432 |
| ISO Size Code | 120408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
