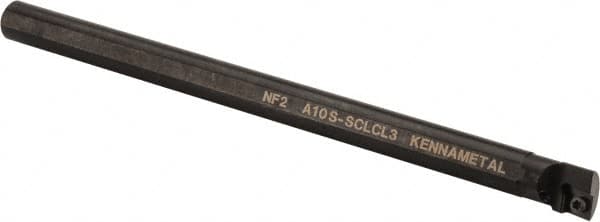

Kennametal - 19.56mm Min Bore Diam, 10" OAL, 5/8" Shank Diam, A-SCLC Indexable Boring Bar - CC.. Insert, Screw Holding Method
Item #: 62181623
Brand: Kennametal
Model #: 1328589
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 19.56 |
| Minimum Bore Diameter (Decimal Inch) | 0.7700 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | CC.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.4060 |
| Insert Thickness (Inch) | 5/32 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Complete Insert Compatibility | CC.. 32.52 |
| Toolholder Material | Steel |
