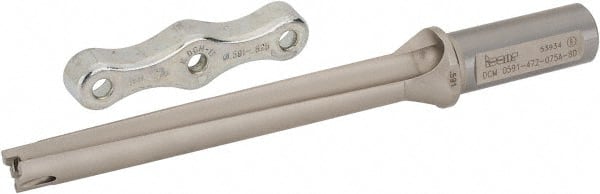

Iscar - 0.591 to 5/8" Diam, 8xD, 4.72" Max Depth, 3/4" Shank Diam, 7.35" OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 15 Seat Size, DCM Toolholder, Series ChamDrill
Item #: 62222393
Brand: Iscar
Model #: 3200962
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.5910 |
| Maximum Drill Diameter (Decimal Inch) | 0.6250 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 4.7200 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 15 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 5.3800 |
| Overall Length (Decimal Inch) | 7.3500 |
| Shank Length (Decimal Inch) | 1.9700 |
