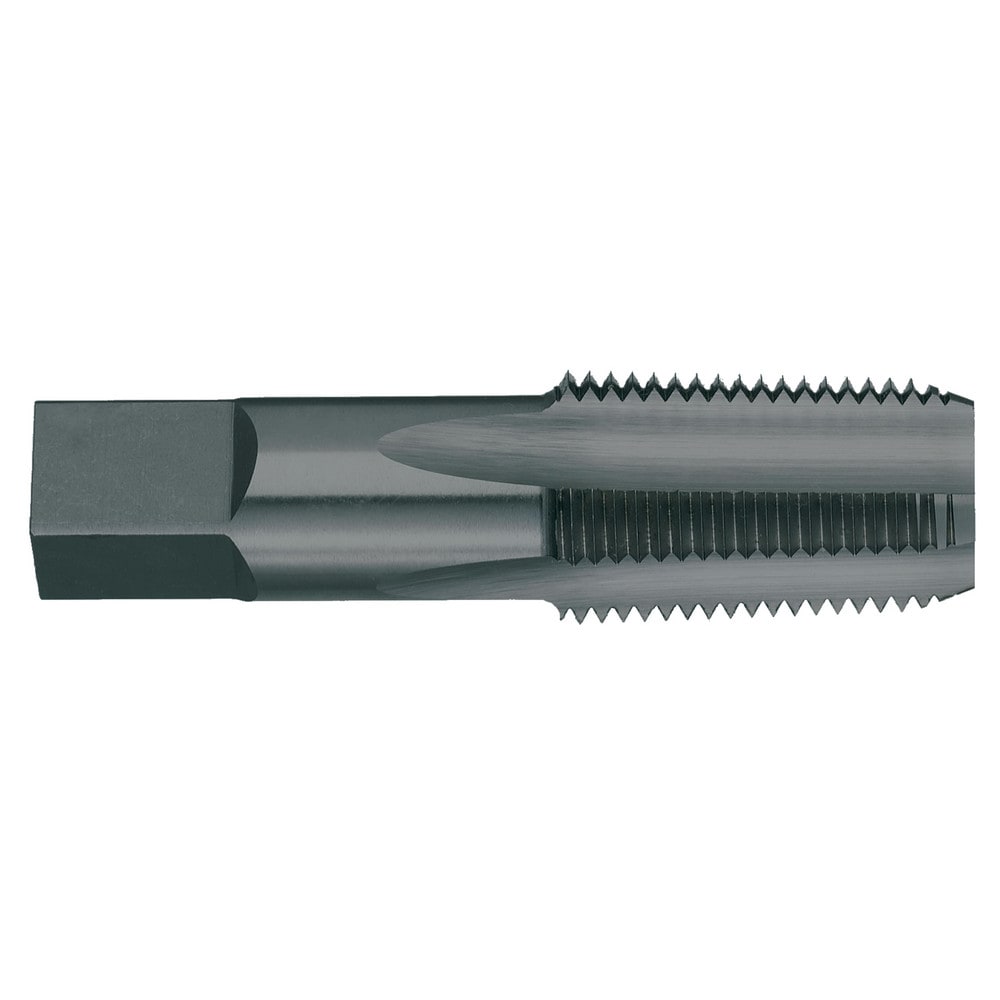

Standard Pipe Taps; Thread Standard: NPT; Material: High-Speed Steel; Overall Length (Inch): 3-1/8; Overall Length (Decimal Inch): 3.1250; Thread Size (Inch): 1/2-14; Threads per Inch: 14; Application: Cast Iron; Thread Length (Inch): 1-3/8
Item #: 79197992
Brand: Titan USA
Model #: TT93883
Product Specifications
| Thread Standard | NPT |
| Material | High-Speed Steel |
| Overall Length (Inch) | 3-1/8 |
| Overall Length (Decimal Inch) | 3.1250 |
| Thread Size (Inch) | 1/2-14 |
| Threads per Inch | 14 |
| Application | Cast Iron |
| Thread Length (Inch) | 1-3/8 |
| Shank Diameter (Decimal Inch) | 0.6875 |
| Square Length (Inch) | 5/8 |
| Square Size (Decimal Inch) | 0.5150 |
| Chamfer | Taper |
| Thread Profile | Standard |
| Series | General Purpose Taps - High Speed Steel - Taper Pipe - NPT - For Cast Iron |
| Thread Length (Decimal Inch) | 1.3750 |
| Coating/Finish | Nitride & Steam Oxide |
| Square Length (Decimal Inch) | 0.6250 |
| Number Of Flutes | 4 |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
