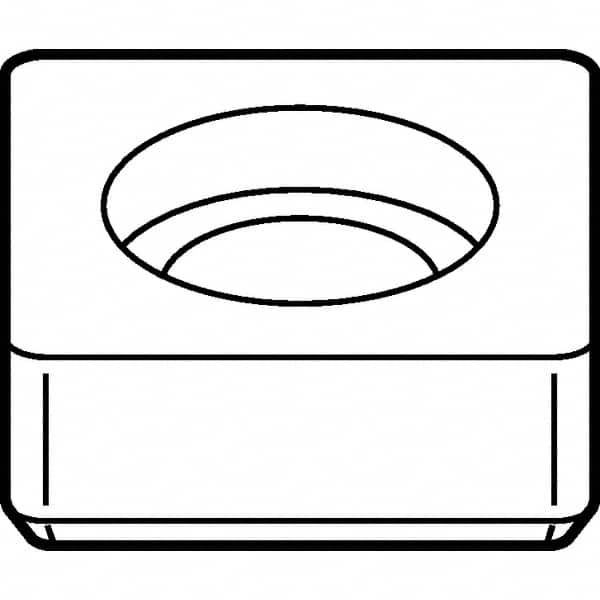

Kennametal - 1/2" Inscribed Circle, Square Turning Shim for Indexables - Ceramic, 0.13" Thick, ISSN Shim Style, Negative Rake, Left Hand, Right Hand Cut
Item #: 62275680
Brand: Kennametal
Model #: 1058390
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Indexable Tool Type | Turning |
| Shim Style | ISSN |
| Shape | Square |
| Rake | Negative |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1300 |
| Complete Toolholder Compatibility | MSRN R/L C164D; MSRN R/L C204D; MSRN R/L C244D |
| Cutting Direction | Left Hand; Right Hand |
| Material | Ceramic |
| Type | Shim |
