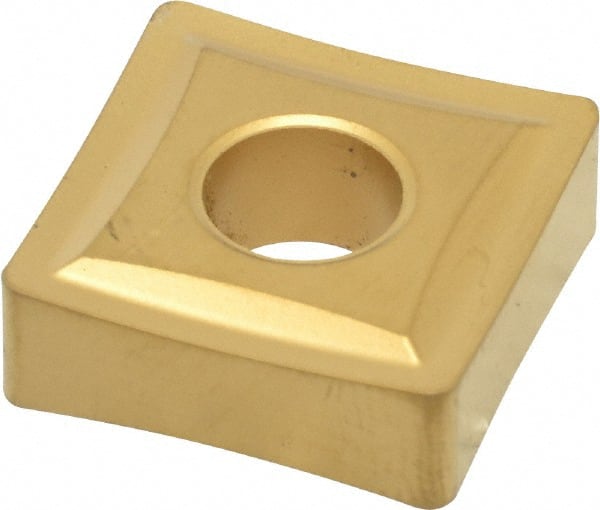

Kennametal - SNMP643 Grade KC850 Carbide Turning Insert - TiC/TiCN/TiN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 3/64" Corner Radius - Exact Tooling

Kennametal - SNMP643 Grade KC850 Carbide Turning Insert - TiC/TiCN/TiN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 3/64" Corner Radius


Item #: 62289814
Brand: Kennametal
Model #: 1161324
Exact Tooling IR#: 04

Features and Benefits

Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Insert Style SNMP
Insert Size 643
Material Carbide
Inscribed Circle (Decimal Inch) 0.7500
Inscribed Circle (Inch) 3/4
Thickness (Inch) 1/4
Thickness (Decimal Inch) 0.2500
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Manufacturer's Grade KC850
Coating TiC/TiCN/TiN
Material Grade C5/C6
Hole Diameter (mm) 7.93
Hole Diameter (Decimal Inch) 0.3122
ISO Number SNMP643
Rake Negative
Relief Angle 0
Coating Process CVD
Primary Workpiece Material P
Secondary Workpiece Material M; K
Included Angle 90
Insert Hand Neutral
Series KENLOC
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0492
Insert Holding Method Pin & Clamp
Shape Square
$ 46.73
