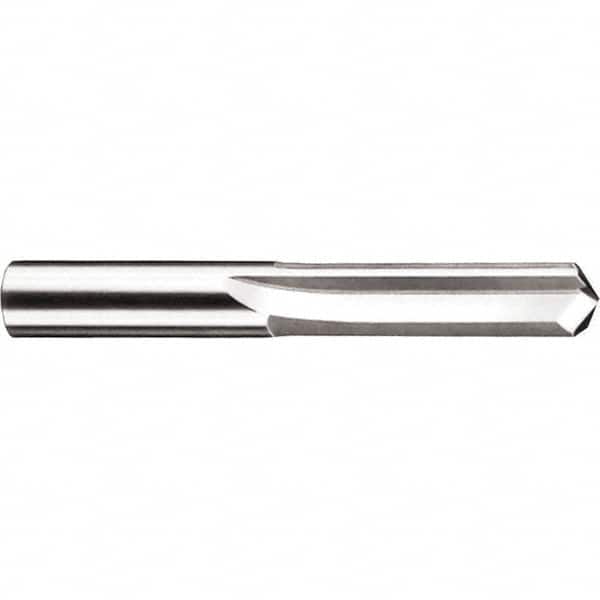

SGS - 11/32", 140° Point, Solid Carbide Straight Flute Drill Bit
Item #: 59006270
Brand: SGS
Model #: 56154
Features and Benefits
Straight flute drills are used for drilling holes in hardened and high strength steels over 50 HRC. The straight flute allows for deep hole drilling.
Solid carbide provides better rigidity than High Speed Steel (HSS). It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace materials, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Drill Bit Type | Straight-Flute Drill Bit |
| Drill Point Angle | 140 |
| Drill Bit Size (Inch) | 11/32 |
| Drill Bit Size (Decimal) | 0.3438 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | AlTiN |
| Overall Length (Decimal Inch) | 3.1719 |
| Overall Length (Inch) | 3-11/64 |
| Through Coolant | No |
| Flute Length (Decimal Inch) | 1.6875 |
| Flute Length (Inch) | 1-11/16 |
| Shank Diameter (Decimal Inch) | 0.3438 |
| Shank Diameter (Inch) | 11/32 |
| Number of Flutes | 2 |
| Point Type | Standard |
| Maximum Drilling Depth (Decimal Inch) | 1.36 |
| Maximum Drilling Depth (Inch) | 1-23/64 |
| Shank Length (Inch) | 1-31/64 |
| Shank Length (Decimal Inch) | 1.4844 |
| Flute Length x Diameter Ratio | 3xD |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Material Grade | Micrograin |
| Series/List | 106 |
