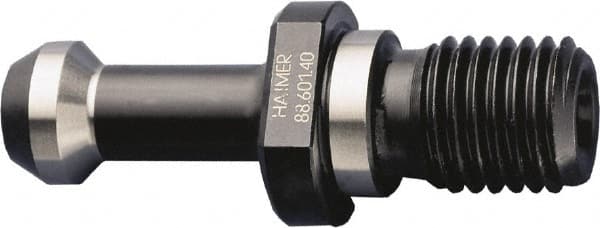

HAIMER - CAT40 Taper, 5/8-11 Thread, 45° Angle Radius, Standard Retention Knob - 1.62" OAL, 0.74" Knob Diam, 0.44" Flange Thickness, 0.64" from Knob to Flange, 0.49" Pilot Diam, 0.2362" Coolant Hole, Through Coolant
Item #: 62372776
Brand: HAIMER
Model #: 88.510.40
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | CAT40 |
| Thread Size | 5/8-11 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.7400 |
| Through Coolant | Yes |
| Pilot Diameter (Decimal Inch) | 0.4900 |
| Overall Length (Decimal Inch) | 1.6200 |
| Knob to Flange Length (Decimal Inch) | 0.6400 |
| Flange Thickness (Decimal Inch) | 0.4400 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
