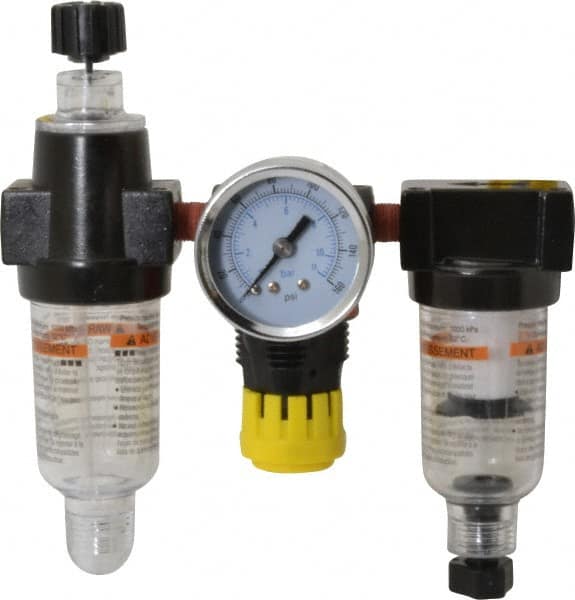

PRO-SOURCE - 1/8" NPT Port Miniature 3 Piece Filter-Regulator-Lubricator FRL Unit - Polycarbonate Bowl, 22 SCFM, 150 Max psi, 5.98" High, Manual Drain
Item #: 62383799
Brand: PRO-SOURCE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Configuration | 3 Pc. Filter-Regulator-Lubricator |
| Body Type | Miniature |
| Port Size NPT | 1/8 |
| Maximum Supply Pressure (psi) | 150 |
| Height (Inch) | 5.98 |
| Width (Decimal Inch) | 5.7700 |
| Bowl Material | Polycarbonate |
| Standard Cubic Feet Per Minute | 22.00 |
| Includes Sight Glass | No |
| Bowl Guard | No |
| Filter Bowl Capacity (oz.) | 1.0 |
| Drain Type | Manual |
| Gauge Port Size (Inch) | 1/8 |
| Pressure Gauge Included | Yes |
| Maximum Temperature (F) | 125 |
| Range | 0 - 125 |
| Modular Connection | No |
| Material | Zinc |
