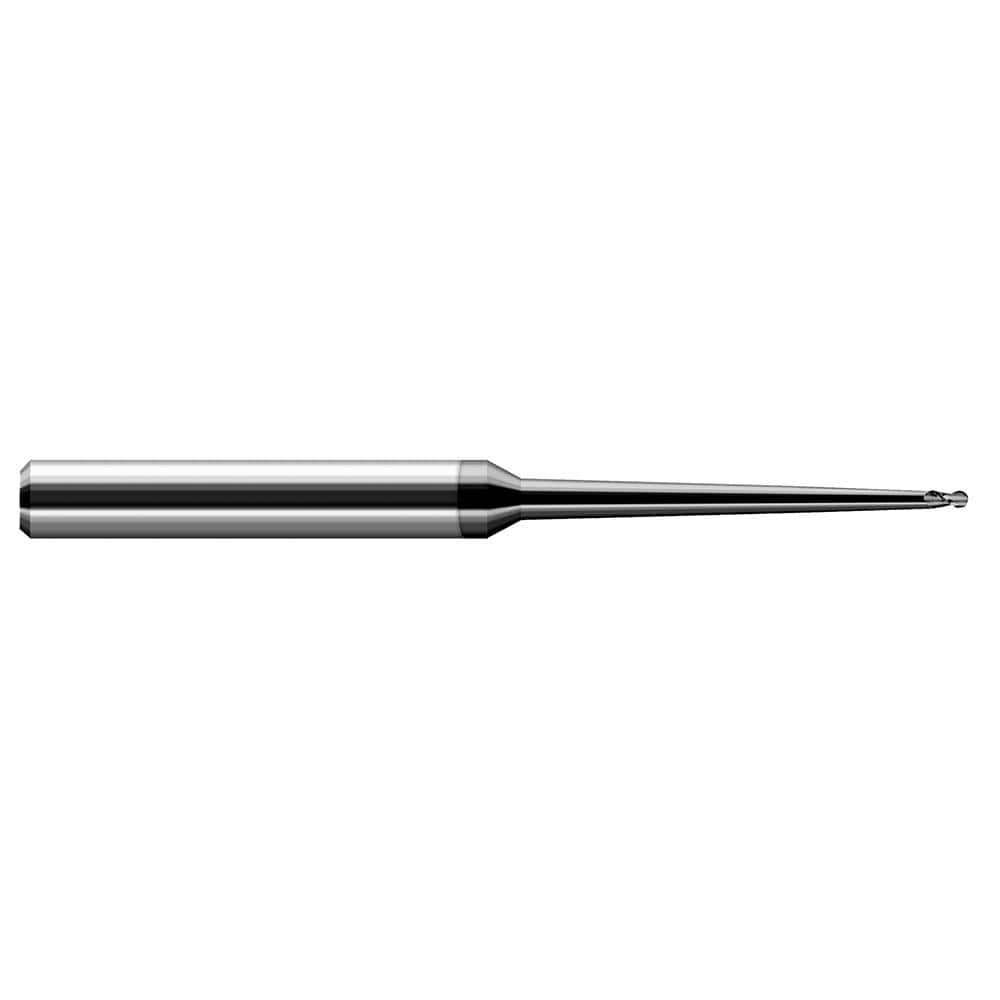

Ball End Mill: 0.375″ Dia, 0.563″ LOC, 2 Flute, Solid Carbide 4″ OAL, 1/2″ Shank Dia, 30 ° Helix, Amorphous Diamond Coated, Single End
Item #: 62478136
Brand: Harvey Tool
Model #: 18924-C4
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Length Of Cut Range (Decimal Inch) | 0.4000 to 0.7000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Reach Length (Inch) | 2 |
| Reach Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Amorphous Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5630 |
