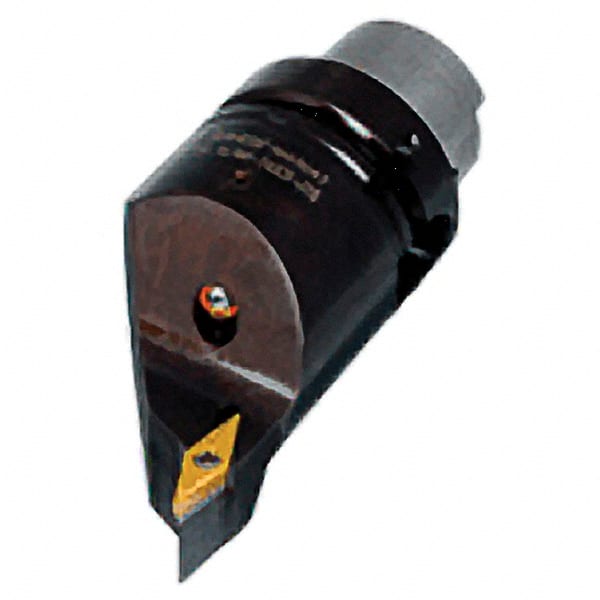

Iscar - Right Hand Cut, Size HSK A63, VBMT & VC.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 25mm Ctr to Cutting Edge, 110mm Head Length, Through Coolant, Series Isoturn
Item #: 62548110
Brand: Iscar
Model #: 3602391
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | HSK A63 |
| Series Name | Isoturn |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 110.00 |
| Head Length/Projection (Decimal Inch) | 4.3307 |
| Insert Style | VBMT; VC.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 25.00 |
| Center to Cutting Edge (Decimal Inch) | 0.9843 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Complete Insert Compatibility | VCGT 160401-AS; VCGT 160402-AS; VCMT 160404-14; VCMT 160408-14 |
