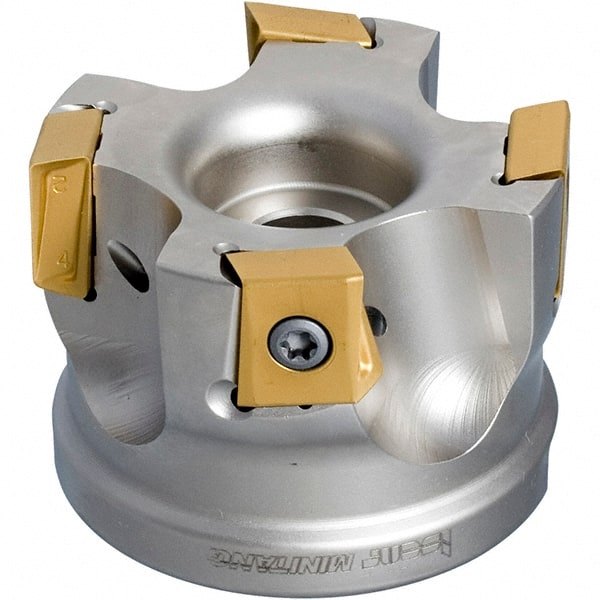

Iscar - 6 Inserts, 2-1/2" Cut Diam, 1" Arbor Diam, 0.63" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, T490 LN.T 1607 Insert Compatibility, Through Coolant, Series Helitang
Item #: 62722863
Brand: Iscar
Model #: 3105213
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | T490 LN.T 1607 |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | T490 FLN-08 |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 1.0000 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Keyway Depth (Decimal Inch) | 0.2190 |
| Pitch | Fine |
| ISO Number | T490 FLN D2.5-06-1.0-16 |
| Coolant Hole Diameter (Decimal Inch) | 0.7800 |
| Complete Insert Compatibility | T490 LNHT 160708PNR; T490 LNHT 160712PNR; T490 LNHT 160716PNR; T490 LNHT 160724PNR; T490 LNHT 160732PNR; T490 LNMT 1607PN-R; T490 LNMT 1607PN-R-CS |
