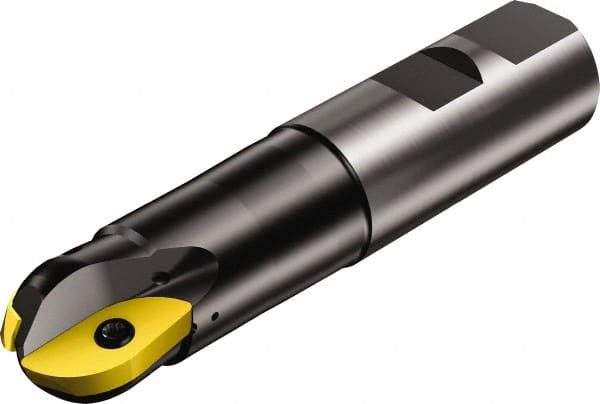

Sandvik Coromant - 5/8" Cut Diam, 14.1986mm Max Depth of Cut, 3/4" Shank Diam, 89.7mm OAL, Indexable Ball Nose End Mill - 27mm Head Length, Weldon Flat Shank, RA216..Mxx Toolholder, RA216-1603 Insert
Item #: 62742234
Brand: Sandvik Coromant
Model #: 5739074
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (mm) | 14.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.5590 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | RA216-1603 |
| Toolholder Style | RA216..Mxx |
| Series | CoroMill 216 |
| Overall Length (mm) | 89.70 |
| Overall Length (Decimal Inch) | 3.5315 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 27.00 |
| Head Length (Decimal Inch) | 1.0630 |
| Number of Side Inserts Used on Toolholder | 0 |
| Maximum RPM | 20000 |
| Projection (Inch) | 1-1/2 |
| Projection (Decimal Inch) | 1.5000 |
