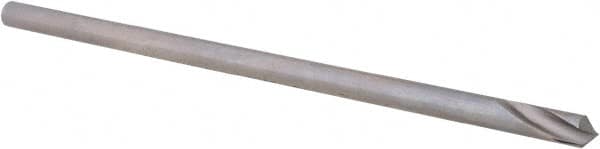

90° 0.1575″ Diam 4″ OAL Cobalt Spotting Drill Bright/Uncoated, 0.475″ Flute Length, 0.1575″ Shank Diam
Item #: 62794474
Brand: Hertel
Model #: H-81197040000
Product Specifications
| Drill Point Angle | 90 |
| Cutting Diameter (mm) | 4.00 |
| Cutting Diameter (Decimal Inch) | 0.1575 |
| Overall Length (Inch) | 4 |
| Tool Material | Cobalt M-35 (HSS-E) |
| Coating/Finish | Bright/Uncoated |
| Single/Double Ended | Single |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Length (Decimal Inch) | 0.4750 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thinning | Web Thinned |
| Web Thickness | 0.0160 |
