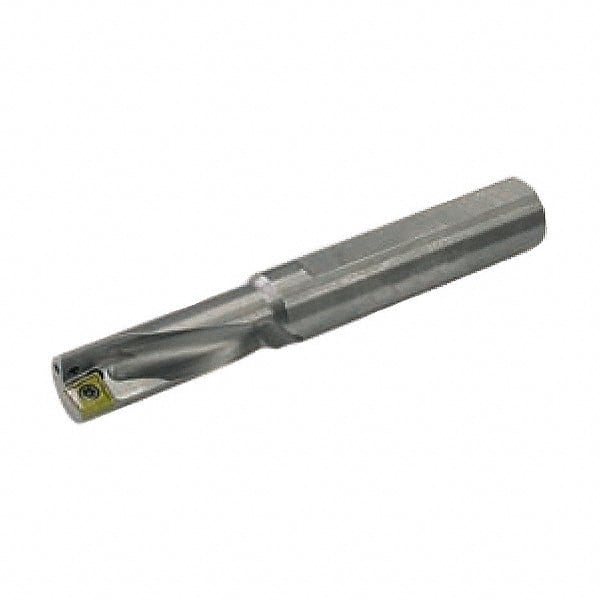

Allied Machine and Engineering - 1.24" Max Drill Depth, 2.25xD, 12mm Diam, Indexable Insert Drill - 1 Insert, 5/8" Shank Diam, Straight Shank
Item #: 62795430
Brand: Allied Machine and Engineering
Model #: 11147313
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 12.00 |
| Drill Diameter (Decimal Inch) | 0.4720 |
| Maximum Drill Depth (Decimal Inch) | 1.2400 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.25xD |
| Insert Size (Decimal Inch) | 0.2760 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 0.4920 |
| Overall Length/Projection (Decimal Inch) | 3.2700 |
| Insert Compatibility | XCET 070304FN-27P; XCET 070304FN-27Q; XCNT 070304EN |
| Flute Length (Decimal Inch) | 1.2400 |
| Body Length (Decimal Inch) | 1.5200 |
| Shank Length (Decimal Inch) | 1.7500 |
| Collar Diameter (Decimal Inch) | 0.7870 |
| Series | EcoCut Classic |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
