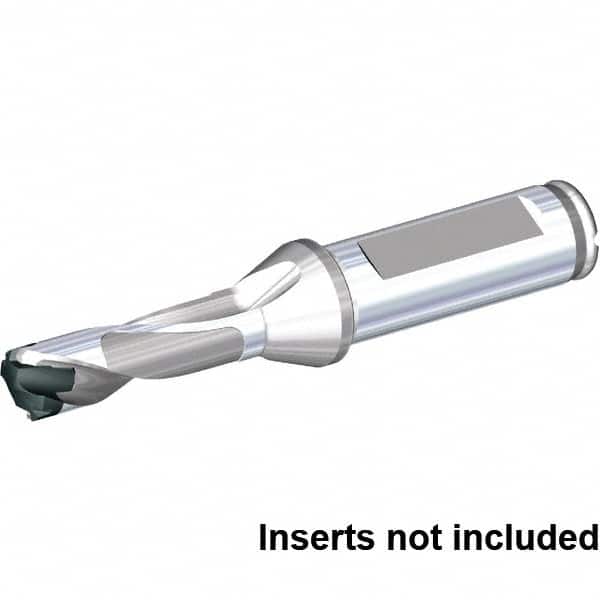

Kennametal - Series KenTIP, Head Connection J, 8xD, 5/8" Shank Diam, Drill Body - 104.78mm Drill Body Length to Flange, KTIP Toolholder, 10.02mm Nose Diam, 152.78mm OAL, 104.78mm Drill Body Length, 99.28mm Flute Length, Through Coolant
Item #: 62809215
Brand: Kennametal
Model #: 5307863
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Head Connection Size | J |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Drill Body Length to Flange (mm) | 104.78 |
| Drill Body Length to Flange (Decimal Inch) | 4.1250 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 10.02 |
| Nose Diameter (Decimal Inch) | 0.3946 |
| Overall Length (mm) | 152.78 |
| Overall Length (Decimal Inch) | 6.0148 |
| Gage Length (mm) | 104.78 |
| Gage Length (Decimal Inch) | 4.1250 |
| Flute Length (mm) | 99.28 |
| Flute Length (Decimal Inch) | 3.9085 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
