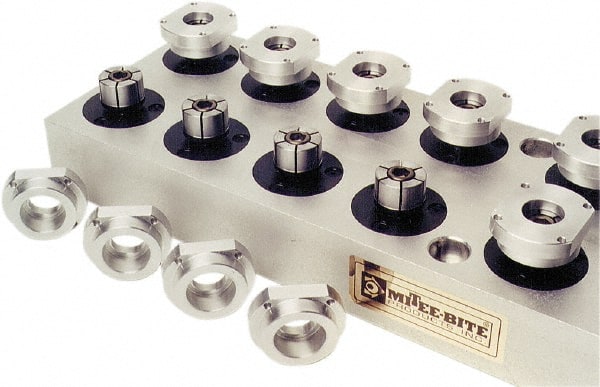

Mitee-Bite - 0.71 to 1.06" Expansion Diam, 4,500 Lb Holding Force, M4 Mounting Screw, M10 Center Screw, Steel ID Expansion Clamps - 1.968" Flange Diam, 1/4" Flange Thickness, 1.55" Mount Hole Diam, 3 Mount Holes, 1.13" Overall Height, 49.3 Ft/Lb Torque
Item #: 62831839
Brand: Mitee-Bite
Model #: 38200
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Flange Diameter (Decimal Inch) | 1.9680 |
| Maximum Expansion Diameter (Decimal Inch) | 1.0600 |
| Minimum Expansion Diameter (Decimal Inch) | 0.7100 |
| Holding Force (Lb.) | 4500.00 |
| Center Screw Thread Size | M10 |
| Mounting Screw Thread Size | M4 |
| Material | Steel |
| Mount Hole Diameter (Decimal Inch) | 1.5500 |
| Flange Thickness (Decimal Inch) | 0.2500 |
| Expansion Height (Decimal Inch) | 0.6900 |
| Height Above Flange (Decimal Inch) | 0.8800 |
| Overall Height (Decimal Inch) | 1.1300 |
| Number of Mount Holes | 3 |
| Thread Length Below Base (Decimal Inch) | 0.7100 |
| Torque (Ft/Lb) | 49.30 |
