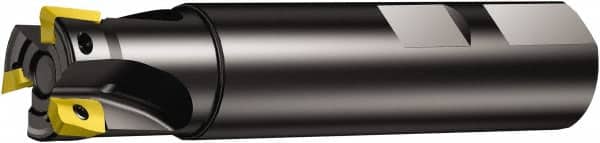

Sandvik Coromant - 1-1/2" Cut Diam, 10.01mm Max Depth, 1-1/4" Shank Diam, Weldon Shank, 4.001" OAL, Indexable Square-Shoulder End Mill
Item #: 62856166
Brand: Sandvik Coromant
Model #: 5740165
Product Specifications
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.0010 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | RA390-038M32-11H |
| Number of Flutes | 6 |
| Head Length (Decimal Inch) | 1.7190 |
| Weldon Flat | Yes |
| Insert Compatibility | R390-11 T3 16E-PM; R390-11 T3 16M-KM; R390-11 T3 16M-PM |
| Shank Length (Decimal Inch) | 2.2810 |
| Maximum RPM | 27,800 |
| Toolholder Material | Steel |
