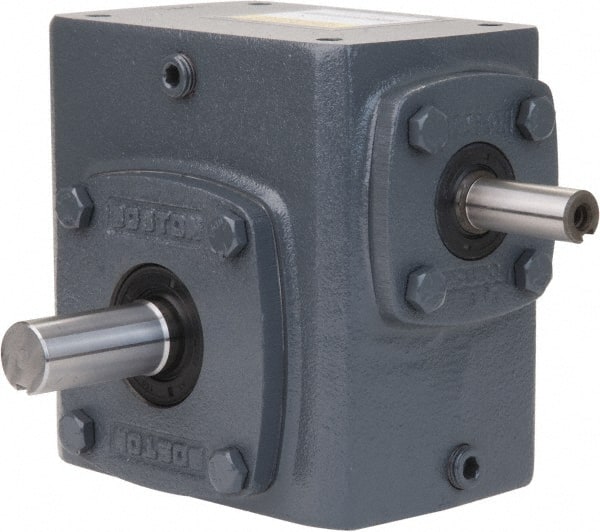

Boston Gear - 5.16 Centerline Distance, 10:1, 175 RPM Output, 21.63 Input Horsepower, 7,182 Lbs. Max Torque, Speed Reducer - Part No. 752-10-G, 1-1/4" Shaft Diam, Single Shaft Left, 1-1/4" Bore, 10-1/2" High
Item #: 62877162
Brand: Boston Gear
Model #: 752-10-G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 5.160 |
| Ratio | 10:1 |
| NEMA Size | 0 |
| PartNo | 752-10-G |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 1.2500 |
| Shaft Diameter (Decimal Inch) | 1.2500 |
| Height (Inch) | 10.5 |
| Maximum Torque Inch/Lbs (Pounds) | 7182.00 |
| Maximum Input Horsepower | 21.63 |
| Output RPM at 1750 Input | 175.0 |
