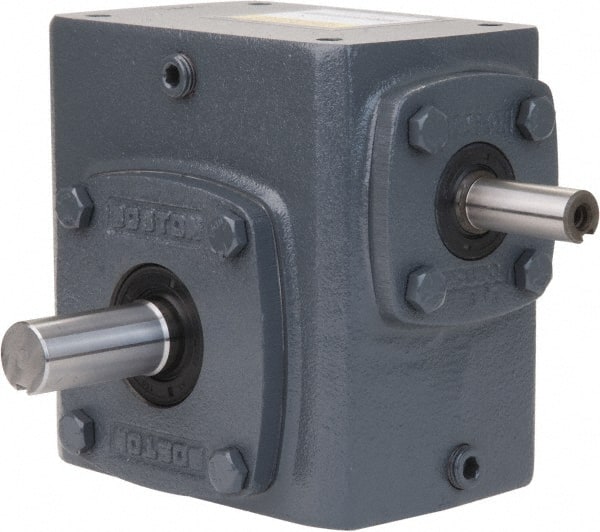

Boston Gear - 3-3/4 Centerline Distance, 10:1, 175 RPM Output, 9.96 Input Horsepower, 3,221 Lbs. Max Torque, Speed Reducer - Part No. 738-10-G, 1" Shaft Diam, Single Shaft Left, 1" Bore, 7.63" High
Item #: 62877188
Brand: Boston Gear
Model #: 738-10-G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.750 |
| Ratio | 10:1 |
| NEMA Size | 0 |
| PartNo | 738-10-G |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 1.0000 |
| Shaft Diameter (Decimal Inch) | 1.0000 |
| Height (Inch) | 7.63 |
| Maximum Torque Inch/Lbs (Pounds) | 3221.00 |
| Maximum Input Horsepower | 9.96 |
| Output RPM at 1750 Input | 175.0 |
