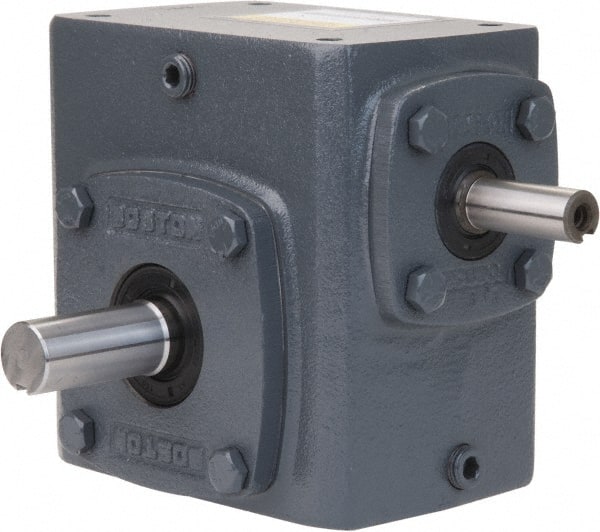

Boston Gear - 6 Centerline Distance, 15:1, 117 RPM Output, 22.33 Input Horsepower, 10,712 Lbs. Max Torque, Speed Reducer - Part No. 760-15-G, 1-1/2" Shaft Diam, Single Shaft Left, 1-1/2" Bore, 12-1/2" High
Item #: 62877303
Brand: Boston Gear
Model #: 760-15-G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 6.000 |
| Ratio | 15:1 |
| NEMA Size | 0 |
| PartNo | 760-15-G |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 1.5000 |
| Shaft Diameter (Decimal Inch) | 1.5000 |
| Height (Inch) | 12.5 |
| Maximum Torque Inch/Lbs (Pounds) | 10712.00 |
| Maximum Input Horsepower | 22.33 |
| Output RPM at 1750 Input | 117.0 |
