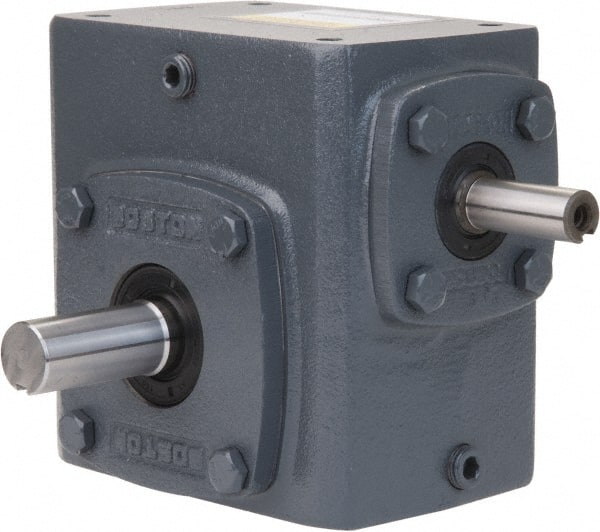

Boston Gear - 1.54 Centerline Distance, 25:1, 70 RPM Output, 0.6 Input Horsepower, 437 Lbs. Max Torque, Speed Reducer - Part No. 715-25-G, 5/8" Shaft Diam, Single Shaft Left, 5/8" Bore, 3.44" High
Item #: 62877477
Brand: Boston Gear
Model #: 715-25-G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.540 |
| Ratio | 25:1 |
| NEMA Size | 0 |
| PartNo | 715-25-G |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 0.6250 |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Height (Inch) | 3.44 |
| Maximum Torque Inch/Lbs (Pounds) | 437.00 |
| Maximum Input Horsepower | 0.60 |
| Output RPM at 1750 Input | 70.0 |
