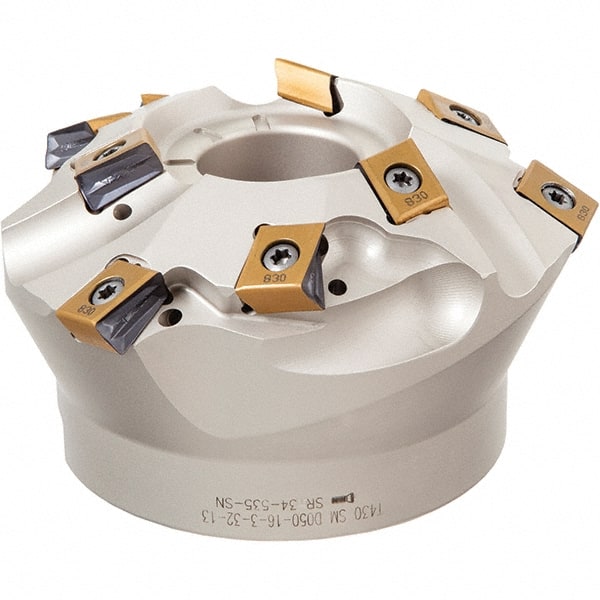

Iscar - 85.2mm Cut Diam, 27mm Arbor Hole, 30mm Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill - 9 Inserts, T490 LN.. Insert, Right Hand Cut, Through Coolant, Series Helitang
Item #: 62893417
Brand: Iscar
Model #: 3106326
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 85.20 |
| Cutting Diameter (Decimal Inch) | 3.3543 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 60 |
| Overall Height (Decimal Inch) | 2.1654 |
| Overall Height (mm) | 55.00 |
| Insert Compatibility | T490 LN.. |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 30.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | T460 SM |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Hub Diameter (mm) | 60.00 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.1220 |
| Counterbore Diameter (Decimal Inch) | 1.4961 |
| Complete Insert Compatibility | T490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS |
