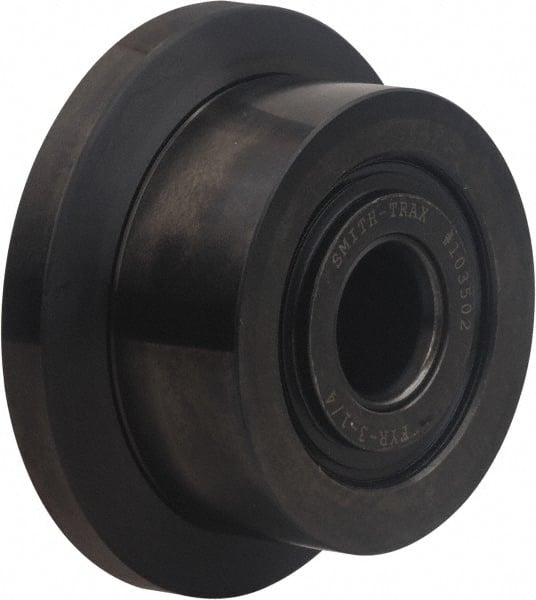

Accurate Bushing - 1" Bore, 3" Roller Diam x 1-3/4" Roller Width, Carbon Steel Flanged Yoke Roller - 14,300 Lb Dynamic Load Capacity, 1-13/16" Overall Width
Item #: 62902499
Brand: Accurate Bushing
Model #: FYR-3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Flanged Yoke Roller |
| Bore (Decimal Inch) | 1.000 |
| Roller Diameter (Inch) | 3 |
| Roller Width (Decimal Inch) | 1.7500 |
| Dynamic Load Capacity (Lb.) | 14300 |
| Overall Width (Decimal Inch) | 1.8120 |
| Material | Carbon Steel |
| Flange Diameter (Inch) | 3-15/16 |
| Flange Thickness (Decimal Inch) | 0.5938 |
