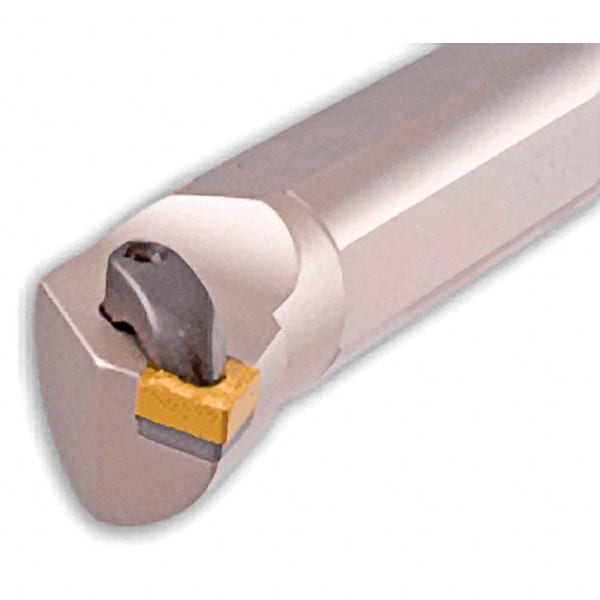

Iscar - 32mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, S-DCLN Indexable Boring Bar - 45mm Max Bore Depth, CN.. 1204.. Insert, Clamp Holding Method
Item #: 62930136
Brand: Iscar
Model #: 3602572
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-DCLN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 32.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 45.00 |
| Overall Length (mm) | 200.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Compatibility | CN.. 1204.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 17.00 |
| Insert Inscribed Circle (mm) | 12.70 |
| Rake Angle | -10.5 |
| Complete Insert Compatibility | CN..12.. |
| Toolholder Material | Steel |
