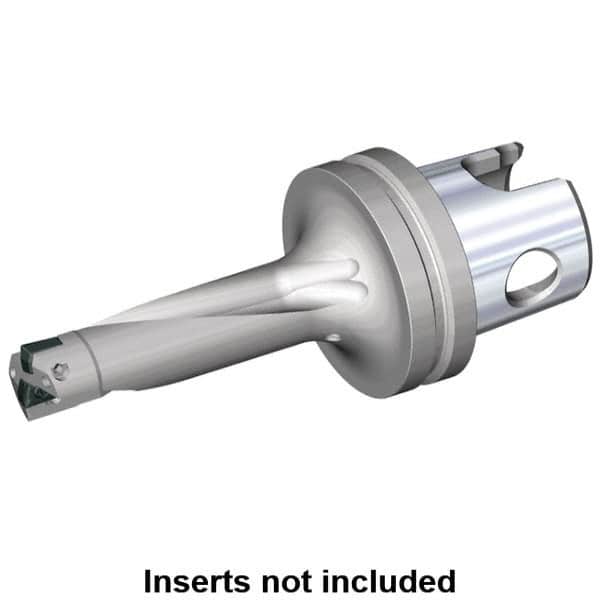

Kennametal - 1.88" Max Drill Depth, 3xD, 0.6252" Diam, Indexable Insert Drill - KM40 Modular Connection Shank
Item #: 62952460
Brand: Kennametal
Model #: 4122557
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFR |
| Drill Diameter (Decimal Inch) | 0.6252 |
| Maximum Drill Depth (Decimal Inch) | 1.8800 |
| Shank Type | Modular Connection |
| Modular Connection Size | KM40 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Diameter (Decimal Inch) | 0.6650 |
| Overall Length/Projection (Decimal Inch) | 3.1400 |
| Insert Compatibility | DFR 0202.. |
| Series | Drill-Fix |
