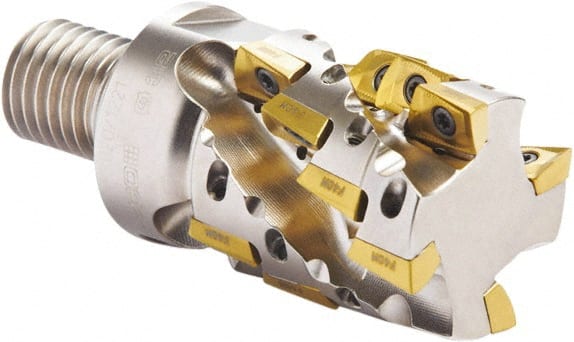

Seco - 32mm Cut Diam, 22mm Max Depth of Cut, 40mm OAL, Indexable Square Shoulder Helical End Mill - XO.. 1204 Inserts, M16 Modular Connection, 90° Lead Angle, Through Coolant, Series Super Turbo
Item #: 62990429
Brand: Seco
Model #: 58497
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (mm) | 40.00 |
| Overall Length/Projection (Decimal Inch) | 1.5748 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8661 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Weldon Flat | No |
| Insert Compatibility | XO.. 1204 |
| Maximum RPM | 18400 |
