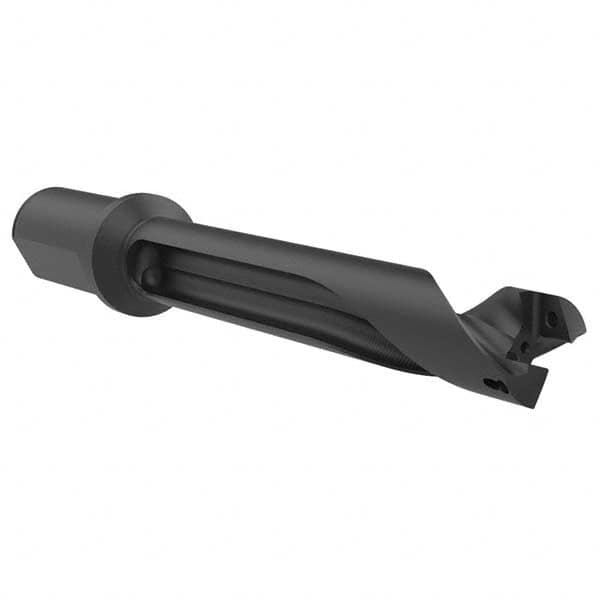

Allied Machine and Engineering - 1.1417" to 1.2597" Diam 7xD 8-13/16" Max Depth Straight Flute Spade Drill
Item #: 33584533
Brand: Allied Machine and Engineering
Model #: ST07290-125F
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 29 |
| Minimum Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Diameter (Decimal Inch) | 1.2597 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Inch) | 12-45/64 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Inch) | 8-13/16 |
| Flute Type | Straight Flute |
| Body Length (Inch) | 10-27/64 |
| Shank Length (Inch) | 2-9/32 |
| Series Code/Seat Size | 29 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
