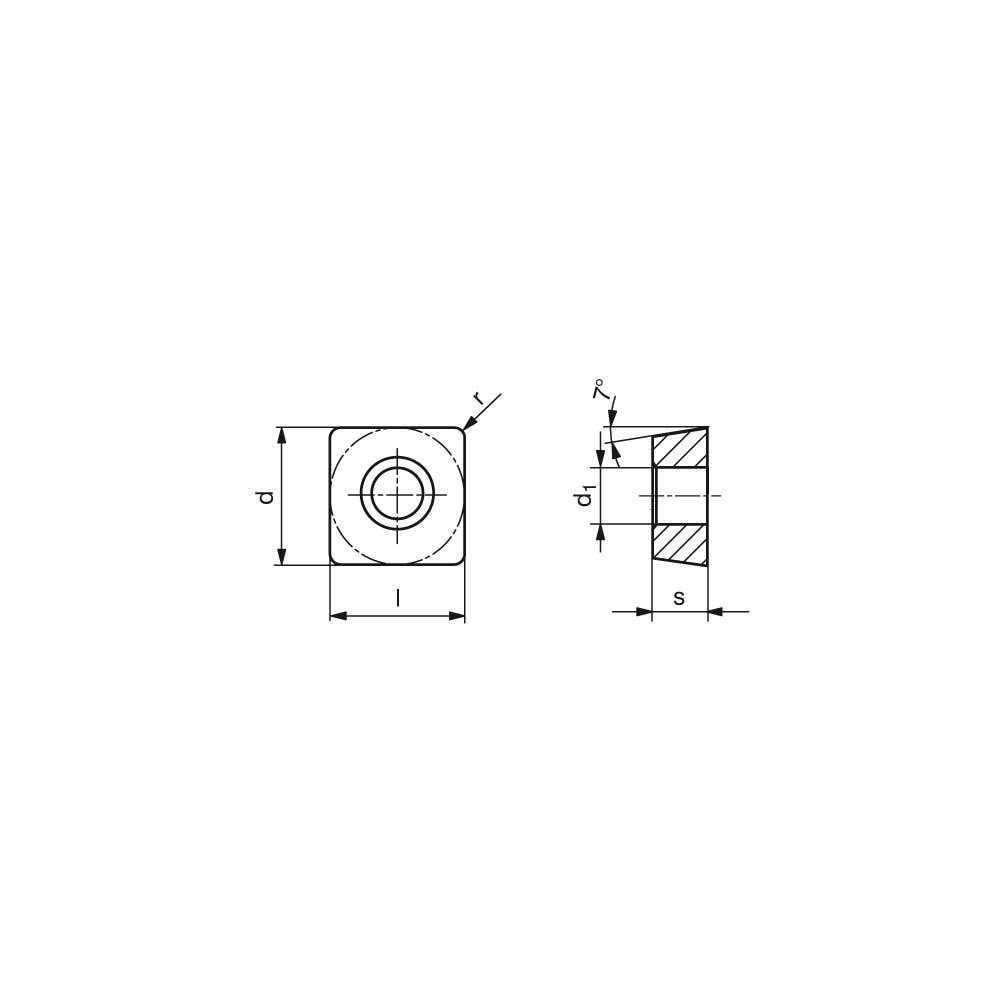

Turning Insert: SCMT32.52EN-SM CTCP135, Carbide
Item #: 26288852
Brand: Ceratizit
Model #: 76268706
Product Specifications
| ANSI Insert Code | SCMT32.52 |
| ISO Insert Code | SCMT09T308 |
| Relief Angle | 7 |
| Insert Style | SCMT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 90 |
| Manufacturer Grade | CTCP135 |
| Coating/Finish | TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | SCMT |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3748 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | SCMT 09T308EN-SM CTCP135 |
| Chip Breaker | SM |
| ANSI Size Code | 32.52 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
