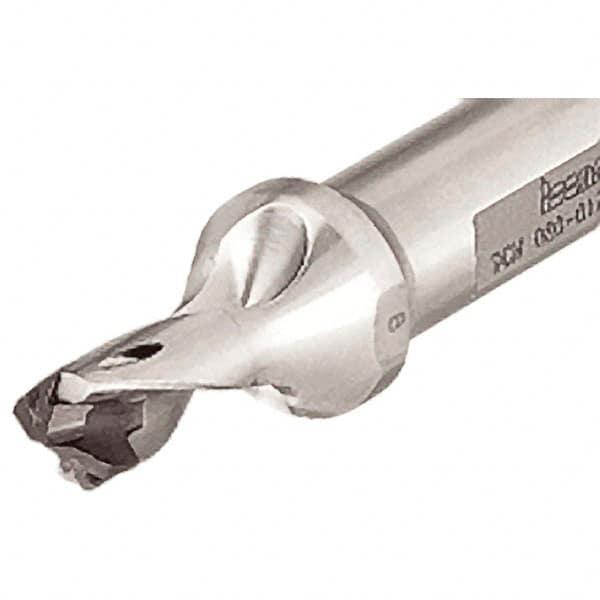

Iscar - 12mm to 12.41mm Diam, 1.5xD, 18mm Max Depth, 16mm Shank Diam, 83.06mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 63102693 Toolholder, Series SumoCham
Item #: 63102693
Brand: Iscar
Model #: 3202494
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 12.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.4728 |
| Maximum Drill Diameter (mm) | 12.41 |
| Maximum Drill Diameter (Decimal Inch) | 0.4886 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.7092 |
| Maximum Drill Depth (mm) | 18.01 |
| Shank Diameter (mm) | 16.01 |
| Shank Diameter (Decimal Inch) | 0.6304 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 35.03 |
| Body Length (Decimal Inch) | 1.3790 |
| Overall Length (mm) | 83.06 |
| Overall Length (Decimal Inch) | 3.2702 |
| Shank Length (mm) | 48.04 |
| Shank Length (Decimal Inch) | 1.8912 |
