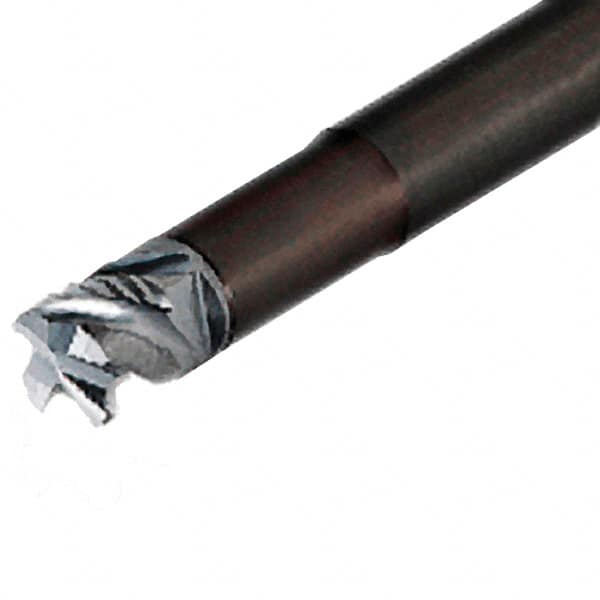

Iscar - Multimaster 5/8" Stepped Shank Milling Tip Insert Holder & Shank - 0.7" Neck Diam, T10 Neck Thread, 7" OAL, Carbide MM S-A Tool Holder
Item #: 63102933
Brand: Iscar
Model #: 3103518
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | Stepped Shank |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Neck Diameter (Decimal Inch) | 0.7000 |
| Neck Thread Size | T10 |
| Toolholder Material | Carbide |
| Overall Length (Decimal Inch) | 7.0000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 5.0000 |
| Effective Length (Decimal Inch) | 4.9300 |
| Milling Tip Style | BCM-MM; FF EWX-MM-04; HCE-MM; HCM-MM; HM90 E90A-MM-10; HP E90AN-MM-07; T490 ELN-MM-08 |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
